Goodwin Submersible Pumps
Goodwin submersible pumps is a truly global business with operations covering the world. Engineering excellence is built into all that Goodwin does.
Product Range

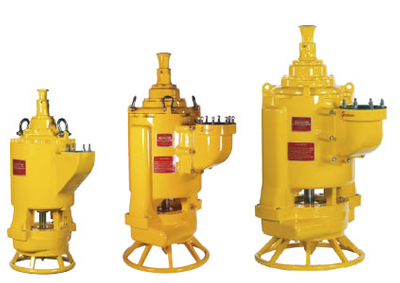

Submersible Slurry Pumps
Goodwin slurry pumps come with four sizes of motor and four types of wet end. The pumps come in three outlet sizes.
This gives a range of pumping performance to suit any slurry pumping application. The pumps are open vane single stage pumps.
more

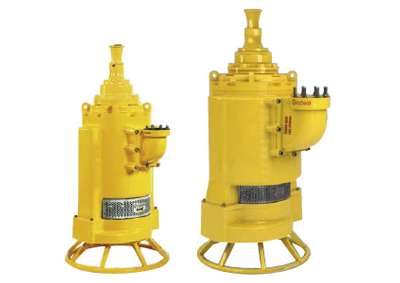

DWHH - Dirty Water High Head Pump
Goodwin high head dirty water pumps come with two sizes of motor. They are closed vane multiple stage pumps designed to create a high pressure.
more

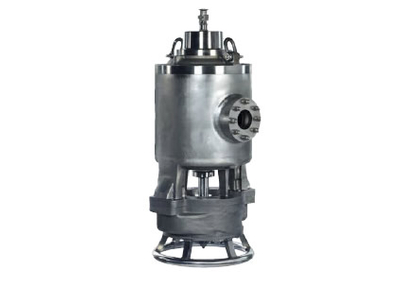

Acid Resistant Slurry Pumps
Goodwin has developed the Super Duplex Stainless Steel “SDSS” acid resistant slurry pump. Constructed with all slurry contact parts made from corrosion resistant alloys, these pumps will reliably operate where other pumps will rapidly fail. They are open vane single stage units.
more| 100 NZE | 100 ANZE® | 100 HNZB | 150 NZE | 150 DACT | 150 ANZE® | 150 HNZB | 200 NZE | 200 ANZE® | 200 HNZB | 100 DWHH | 150 DWHH | 100 SDSS | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Max solid content (by weight) | 65% | 65% | 25% | 65% | 65% | 65% | 40% | 65% | 65% | 40% | 10% | 10% | 65% |
| Max slurry specific gravity kg/l | 2.8 | 2.8 | 1.5 | 2.5 | 2.8 | 2.1 | 1.5 | 2.5 | 2.1 | 1.5 | 1.1 | 1.1 | 2.8 |
| Max particle size | 25mm | 32mm | 12mm | 54mm | 37mm | 45mm | 30mm | 76mm | 76mm | 40mm | 10mm | 10mm | 32mm |
| Max slurry temperature | 90°C | 90°C | 90°C | 90°C | 90°C | 90°C | 90°C | 90°C | 90°C | 90°C | 90°C | 90°C | 90°C |
| Max flow m³/h | 137 | 220 | 160 | 380 | 180 | 500 | 460 | 800 | 800 | 800 | 195 | 195 | 220 |
| Max head (pressure bar) | 33m (3.2 bar) | 38m (3.7 bar) | 60m (5.9 bar) | 25m (2.4 bar) | 38m (3.7 bar) | 38m (3.7 bar) | 53m (5.2 bar) | 27m (2.6 bar) | 40m (3.9 bar) | 53m (5.2 bar) | 130m (12.8 bar) | 190m (18.6 bar) | 38m (3.7 bar) |
| Max submergence depth | 28m | 28m | 28m | 28m | 28m | 28m | 28m | 28m | 28m | 28m | 28m | 28m | 28m |
Features That Make Goodwin Number One
Goodwin submersible pumps have been manufactured since 1982 and are recognised as market leaders in terms of performance and reliability.
The pumps have been continually developed over four decades to enhance strength and endurance. Goodwin pumps deliver proven performance in the most demanding environments.
Need More Details? Contact Us
Global manufacturers of submersible pumps for heavy industrial and mining operations
Goodwin are established world leaders in submersible slurry pumping technology with
pioneering design and unrivalled performance capabilities that
are mimicked but never equalled. Trust the best. Trust Goodwin.
